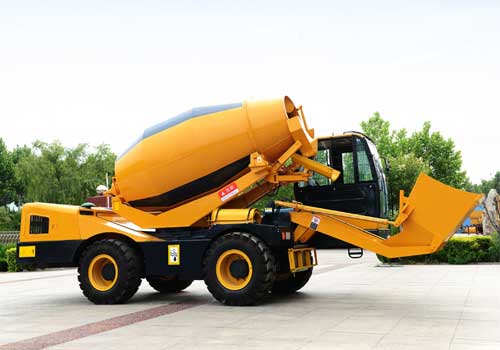

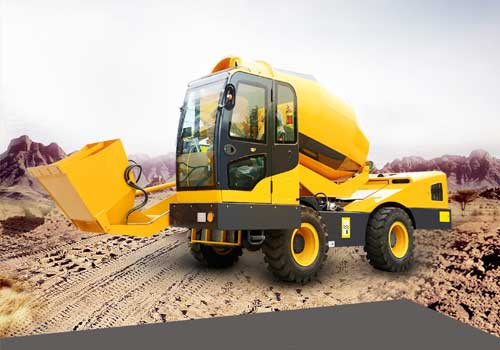

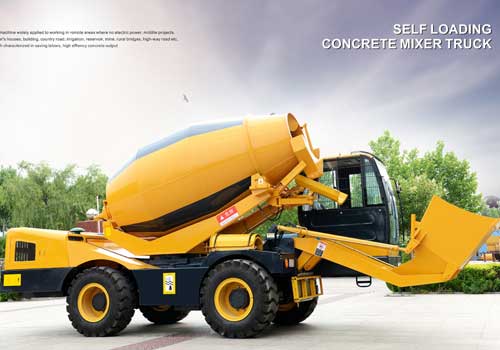

Self Loading Concrete Mixer Truck For 1.2 CUM
Condition:
Brand new
Minimum Order Quantity:
One set
Guarantee period:
12 months
| Drum Capacity | 1.8m3 |
| Concrete Output | 1.2m3 |
| Loading Ratio | 76% |
| Rotary Drum | articuated steering |
| Metering | Electronic weighing system (options) |
| Production Capacity | 4batches in an hour.5 cubic meters per hour |
| ENGINE | Yuchai4102, diesel, water cooling, 4 cylinders.2, 200 revolutions per minute, rated power 60KW |
| Transmission Way | Full hydraulic drive. 4wheel drive and 2 turns. All the power comes from hydraulic oil, including walking 4X4. |
| Climbing Ability | 30% |
| Speed Range | Low speed 0-25 km/h, hight speed 0-45Km/h |
| CAB | Ultra wide deluxe cab . ROPS type |
| Hydraulic system | Open feed, two gear pump participate in action |
| Joystick | A four-way hydraulic polot with an electric control button controls the bucket. |
| Bucket | 300L, hydraulic gate |
| Chute | Equipped with two removable shaft pins to increse the discharge length. |
| Water Supply System | Self-priming hydraulic drive pump/electonic water flow monitor/high pressure washer (optional) |
| Brake | inner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independent double-return roud. Negative pressure type stop brake, the front bridge is equipped with inner hub. |
| Turn | Hydraulic steering, rear wheel steering. |
| Tyre | 12-16.5 tires |
| Power System | 24V |
| OIL TANK/water tank | 2 x220L water tank. Diesel tank: 125 liters. Hydraulic tank:130 liters. |
| Weight | 4800KG |
| L*W*H | 6030MM*2180MM*2250MM |
| Wheelbase | 1.9M |

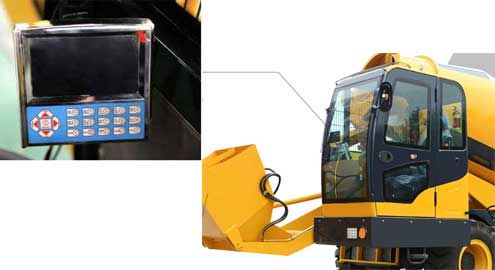

Weighing System:
There is a computer , automaticly comtrol and display the weights of materials.

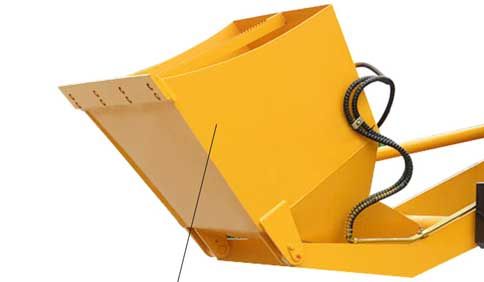

Loading System:
Hydraulic shovel , this mixer can load the material easily and accurately . There is a blade in the shovel so that the cement bag can be cut automatically to avoid the waste of cement.
Discharging System:
Adopt the revolutionary solution . The operator can control the mixing barrel at a 300 degree rotation so that it can discharge the concrete at a 2 meters height , 4directions . Driving cab: There is a well appointed cab . The driver can operate almost all the actions through a handle shank. This mixer equipped with ROPS-FOPS system to provide the driver with comprehensive safeguard.

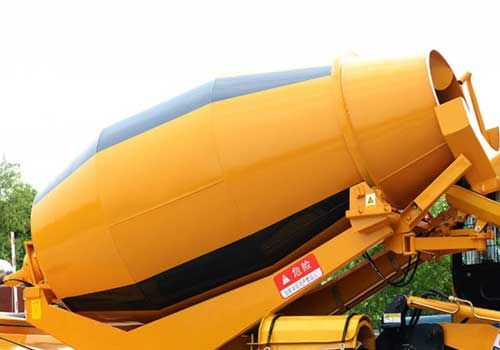

Mixing System:
After the aggregate and cement are fed into the mixing barrel , they will be mixed with the pressed water from the doublewater tanks whick are on the truck . The specially designed double screw to confirm the quality of concrete.
Wheel System:
Steel wire super - resistant engineering tire .
